EFR 8374 62mm Core Assembly | Iron

Bearing Housing

Applicable Turbine Housing

Part N: 12747100007
in stock

Shop Local

Shop locallyChange >

Shop Local

Close X
Currently located
AGP Turbochargers, Inc.

1930 East 3rd Street #12

Tempe, AZ 85288

63.3 Miles
Full-Race Motorsports

5019 E Madison St.

Phoenix, AZ 85034

65.6 Miles
  • Details
  • Specs
  • Compressor Maps
  • Service Products

Details

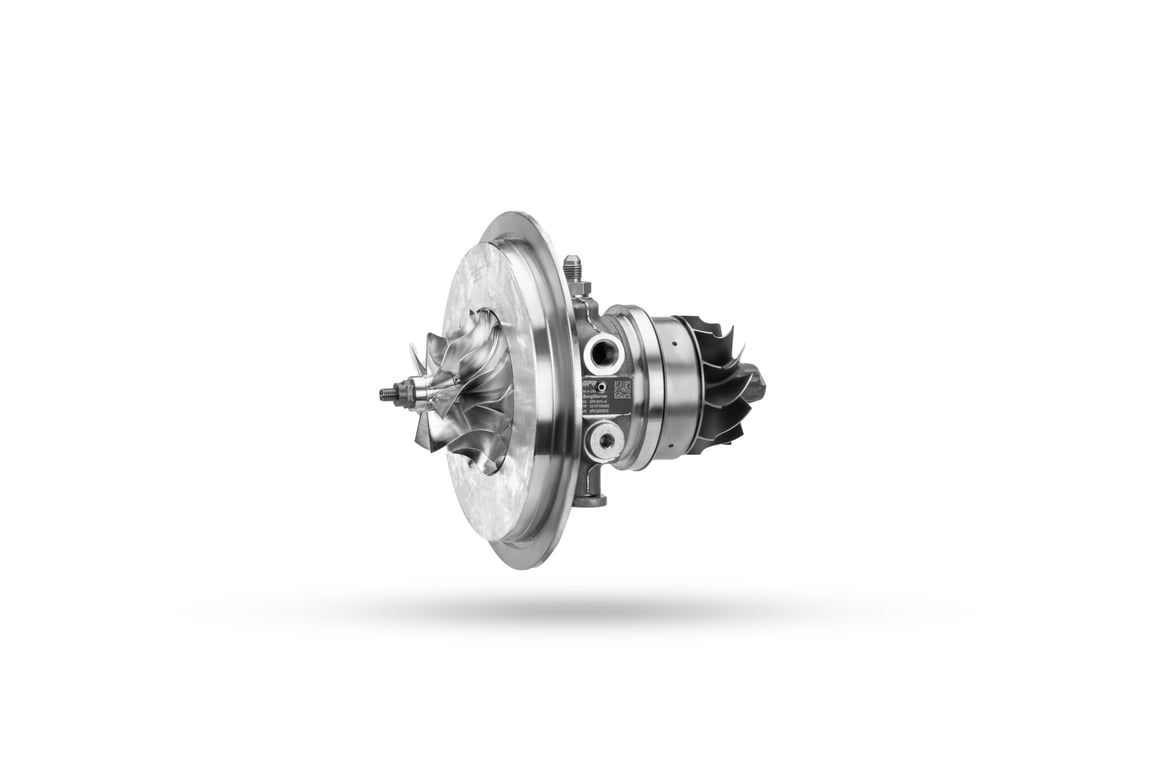

When it comes to repairing your EFR turbo, put your trust and time into new core assembly (aka CHRA) from BorgWarner!  All core assemblies come with 100% new parts, they are pre-balanced from the factory, and are ready to be assembled with your end-housings.  Check your housings for defects before purchase to ensure they are reusable.

Features include below which are 100% new and balanced from the BorgWarner factory!

  • 12747100007 = B2 8374 62mm Core Assembly | Iron
  • Max flow rate: 79 lb/min
  • Gamma-Ti ultra-lightweight turbine wheel
  • Dual ceramic ball bearings with metal cage
  • Forged milled aluminum compressor with extended tip
  • Water-cooled center section

Product use: For off-road use only in performance race applications.

warningP65 Warning

Specs

Power Range HP
475 to 750 hp
Comp Wheel OD
84.00
Comp Wheel Inducer Dia
62.60
Bearing Housing
iron bearing housing
Turbine Wheel Material
gamma-ti
Frame Size
b2
Turbine Wheel OD
74.00
Turbine Wheel Exducer
65.00
Twin-turbo Power Range HP
950 to 1,500 hp
Bearing System Type
dual ceramic ball bearings with metal cage
Water Cooled
yes
Bearing Housing Material
iron

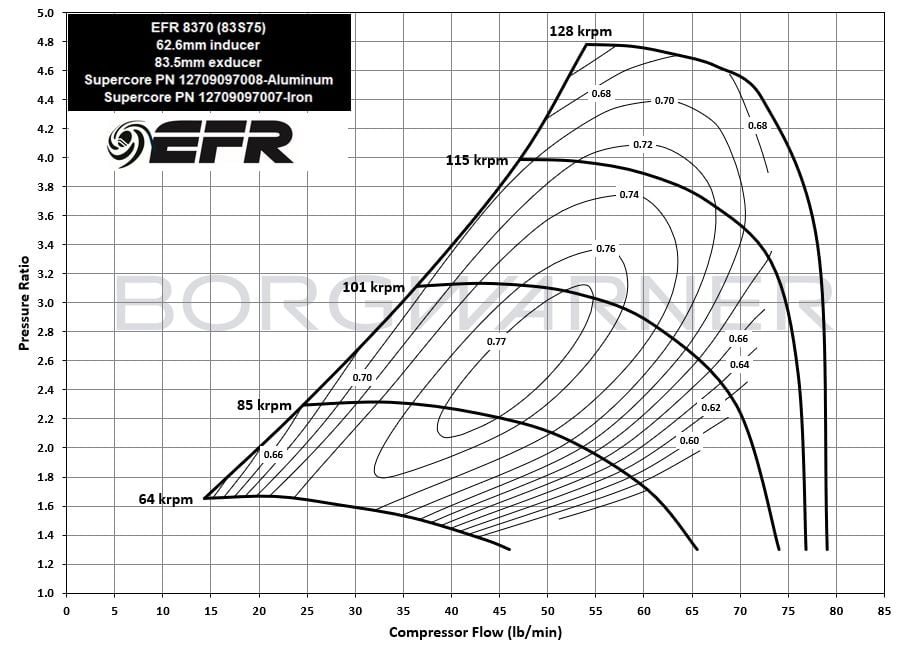

Compressor Maps
