New Product as shown at PRI! SX-R sets a new high standard when it comes to journal bearing performance turbochargers! BorgWarner Turbo Aftermarket is pleased to announce the release of the AirWerks® S200 SX-R and S300 SX-R series super-cores for performance applications! With just four-part numbers, you can cover projects from 300 HP to 1,100 HP for single turbo applications or double the power with a twin-turbo setup resulting in 600 HP to 2,200 HP.  SX-R is a top choice for speed shops and new dealers thanks the shortened list of SKUs to stock. SX-R offers new compressor wheel technology which provides the ability to downsize the rotor group while enhancing overall map width in comparison to prior SX-E products. SX-R is proudly Made in USA at BorgWarner’s factory located in Arden, NC!

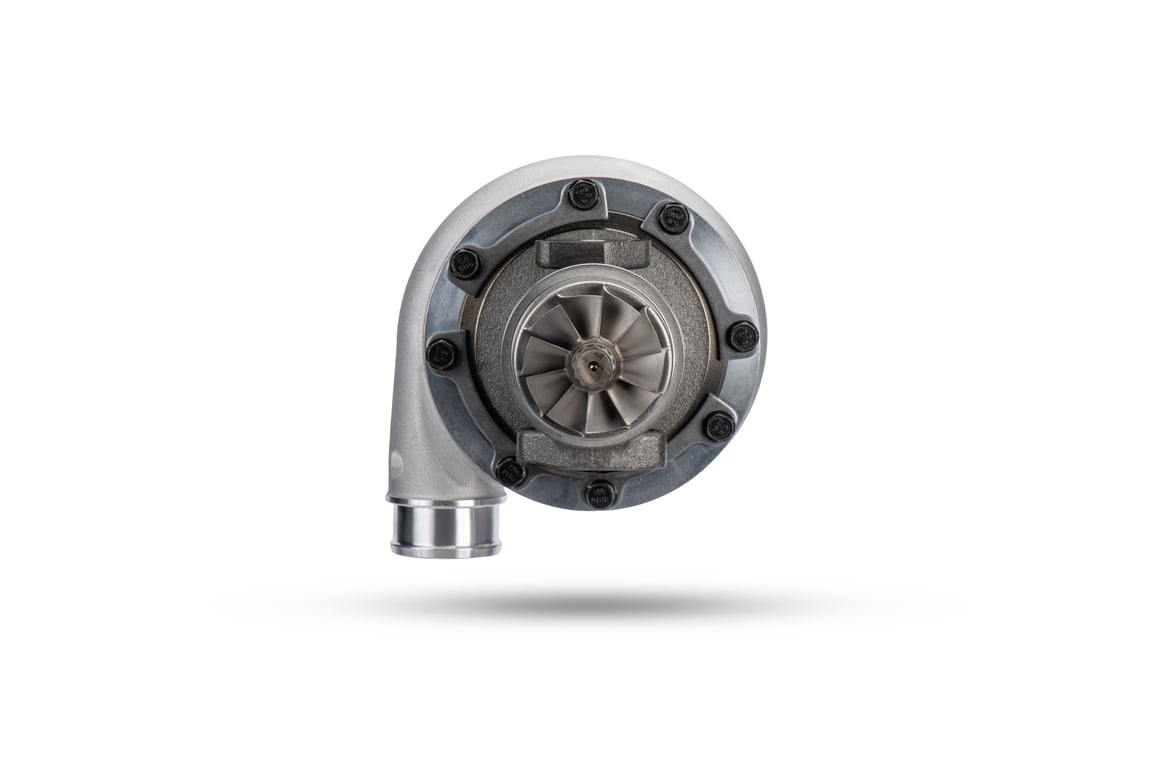

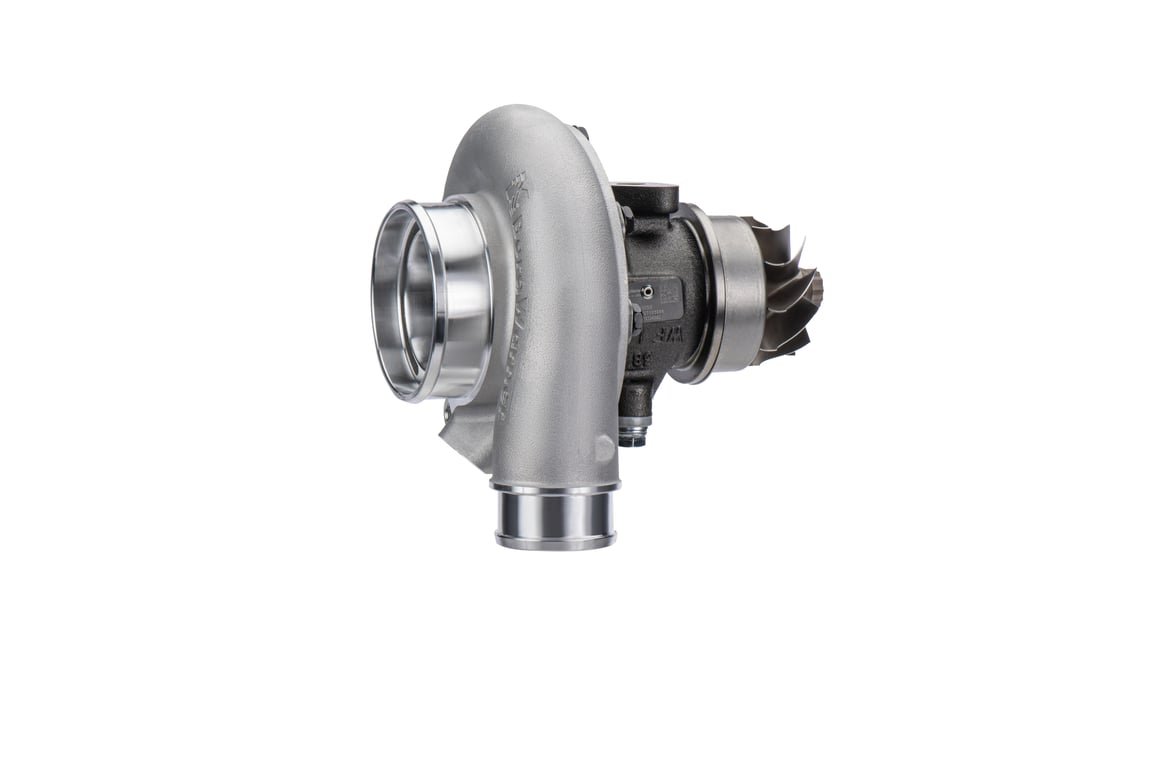

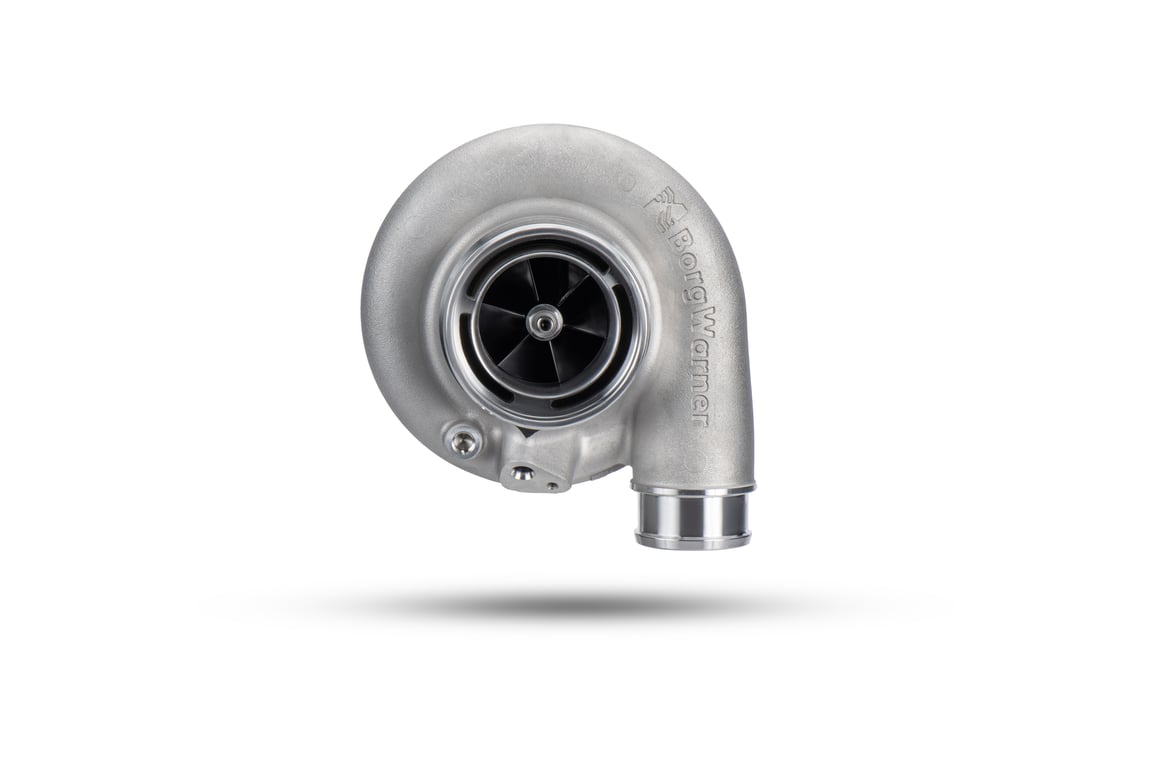

This S200 SX-R is sized just right for single turbo applications making 300 HP to 775 HP or 600 HP to 1,1550 HP in twin turbo configurations!  This turbo offers great value and performance!

Features include:

• 12707105086 = AirWerks S200SX-R Supercore 58mm
• Max flow rate: 75 lb/min
• Inconel 713C turbine wheel
• Twin hydrodynamic journal bearing system
• Forged milled aluminum compressor with extended tip
• Anodized black compressor wheel
• Integrated boost port
• Integrated speed sensor port (customer can drill out if using)
• Turbine housing options for 70mm turbine wheel:
  • T4 Twin Scroll = 177191 (0.83 A/R)
  • T4 Twin Scroll = 177193 (1.00 A/R)
  • T4 Twin Scroll = 177196 (1.09 A/R)
  • T4 Twin Scroll = 177192 (1.15 A/R)
  • T4 Twin Scroll = 177194 (1.22 A/R)
  • T4 Twin Scroll = 178331 (1.27 A/R)

*Note:  Turbine housings are sold separately and above requires external wastegate which are not included. Turbine housing inlet volute opening is sized as T3, but the connection has a T4 bolt pattern.

Sold separately:  Speed sensor, turbine outlet v-band clamp, and drain port fitting.

1 Year Limited Warranty

Need to make a repair? View core assemblies, just the cartridge, which can be purchased for quick repairs. This is the best method to make a repair as they come pre-balanced with new wheels which avoids the need for special rebuild tools (check that your end-housings are reusable).

Not sure which size turbo you need? Visit BorgWarner’s Match Bot to which will help you properly pick the best turbo for your application and goals.

Product use: For off-road use only in performance race applications.

P65 Warning
