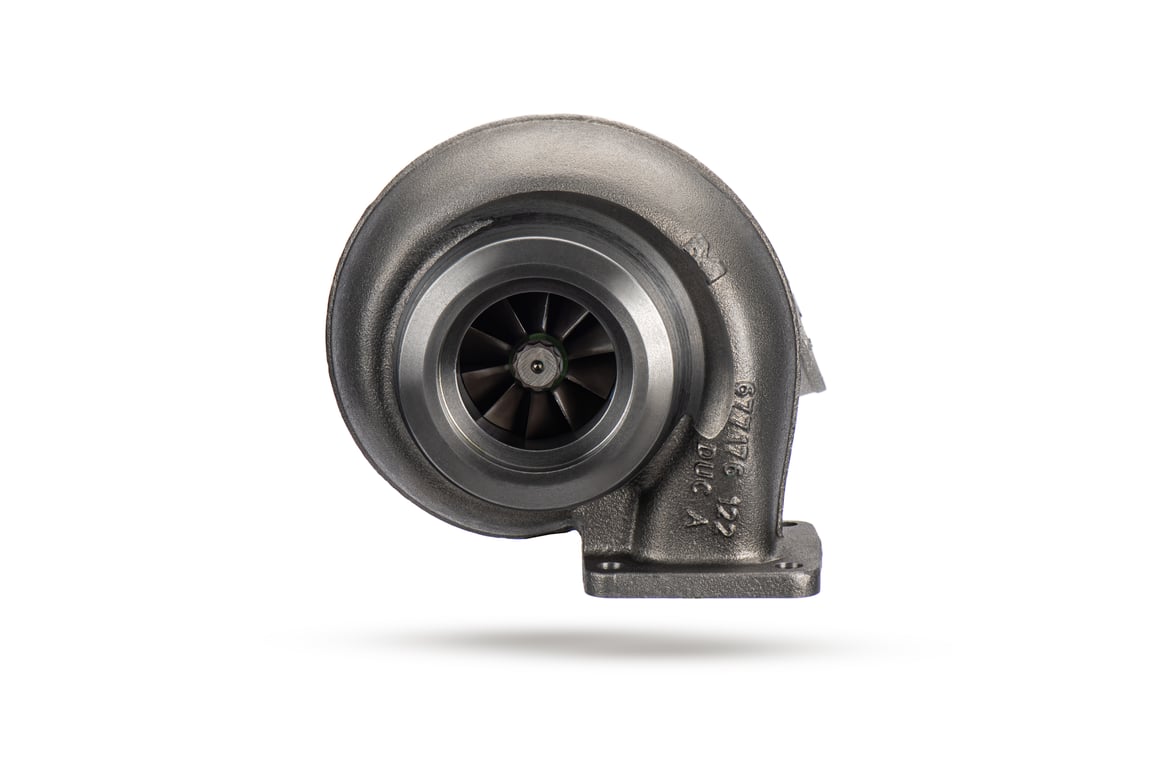

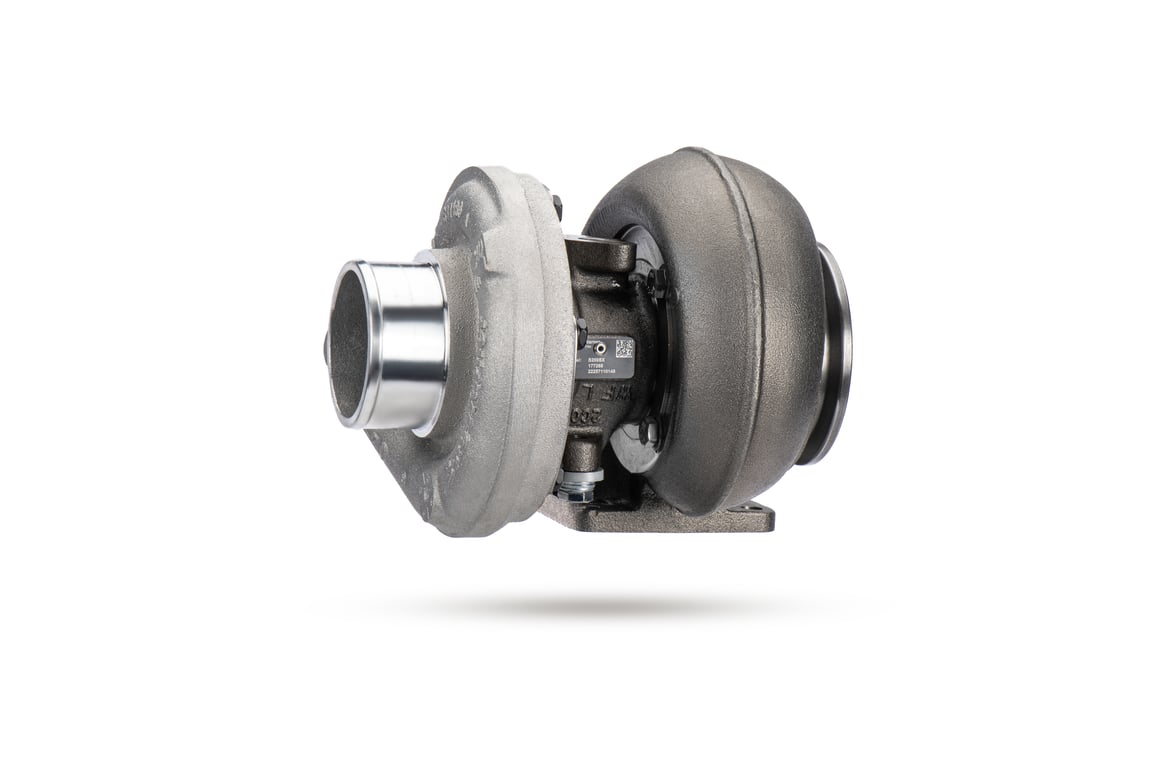

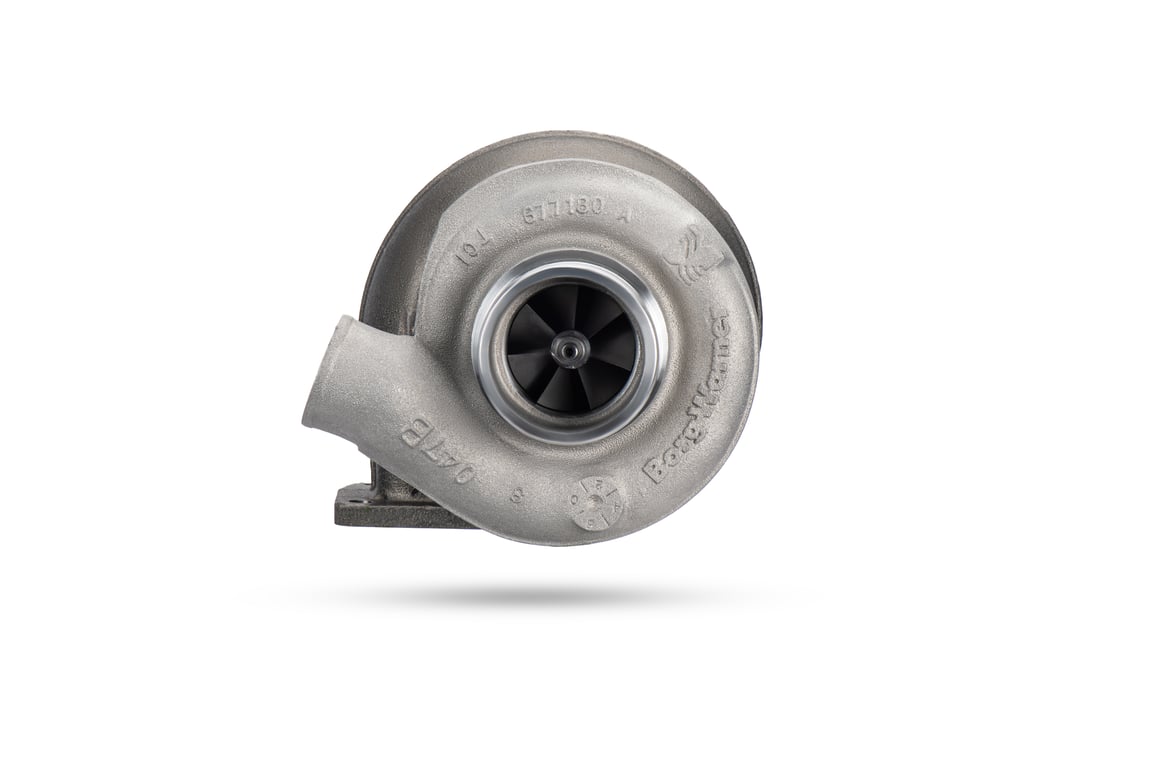

Introducing SX high-performance journal bearing turbochargers from BorgWarner’s AirWerks series!  AirWerks products utilize journal bearing systems with Inconel 713C turbine wheels which are a great match for performance gasoline and diesel engines.

This S200 SX is sized just right for single turbo applications making 220 HP to 580 HP or 440 HP to 1,160 HP in twin turbo configurations (gas engines)! SX offers great value and performance without sacrificing quality!

Features include:

• 177257 = AirWerks S200SX Turbo 51mm
• Max flow rate: 58 lb/min
• Inconel 713C turbine wheel
• Twin hydrodynamic journal bearings (270 degree)
• Cast aluminum compressor wheel with extended tip

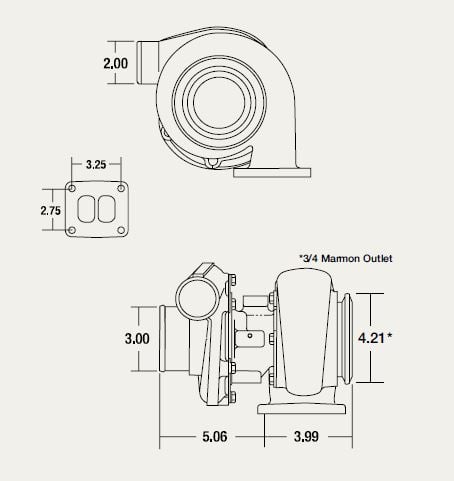

• Turbine outlet: ¾” marmon connection
• Turbine housing options for 70mm turbine wheel with T3 volute and T4 mounting flange:
  • T4 Twin Scroll = 177191 (0.83 A/R)
  • T4 Twin Scroll = 177193 (1.00 A/R)
  • T4 Twin Scroll = 177196 (1.09 A/R)
  • T4 Twin Scroll = 177192 (1.15 A/R)
  • T4 Twin Scroll = 177194 (1.22 A/R)
  • T4 Twin Scroll = 178331 (1.27 A/R)

*Note:  Turbine housings are sold separately and above requires external wastegate which are not included.

1 Year Limited Warranty

Need to make a repair? View core assemblies, just the cartridge, which can be purchased for quick repairs.  This is the best method to make a repair as they come pre-balanced with new wheels which avoids the need for special rebuild tools (check that your end-housings are reusable).

Not sure which size turbo you need?  Visit BorgWarner’s Match Bot to which will help you properly pick the best turbo for your application and goals.

Product use: For off-road use only in performance race applications.
