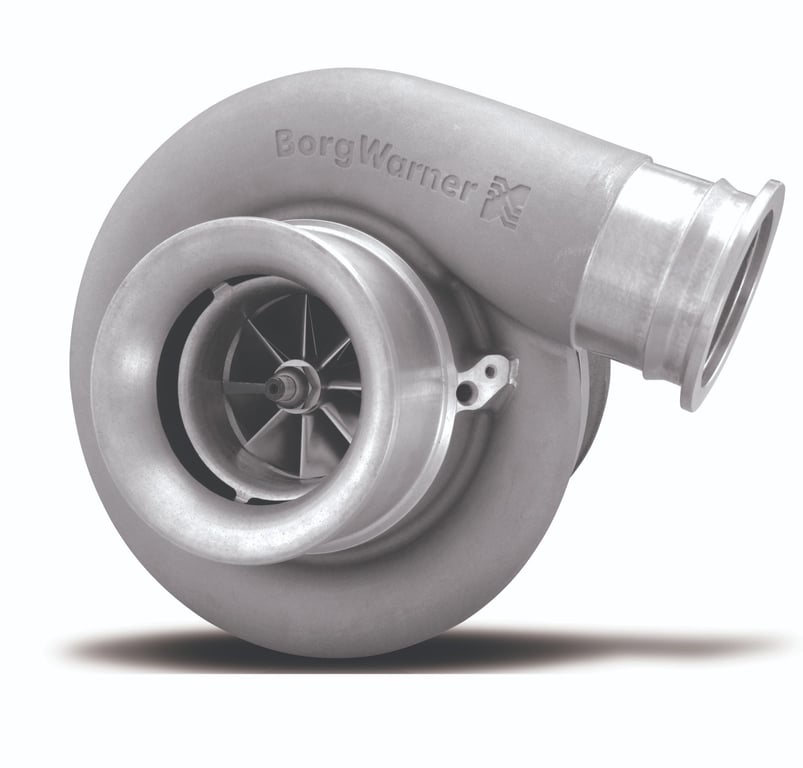

Introducing SX high-performance journal bearing turbochargers and supercores from BorgWarner’s AirWerks series! AirWerks products utilize journal bearing systems with Inconel 713C turbine wheels which are a great match for performance gasoline and diesel engines.
This S500 SX is sized just right for single turbo applications making 900 HP to 1,475 HP or 1,800 HP to 2,950 HP in twin turbo configurations (gas engines)! SX offers great value and performance without sacrificing quality!
Features include:
- 179186 = AirWerks S500SX Supercore 88mm
- Max flow rate: 5 lb/min
- Inconel 713C turbine wheel
- Twin hydrodynamic journal bearings (270 degree)
- Cast aluminum compressor wheel with extended tip
- Compressor cover recirculation groves
- Dual machined compressor cover discharge connection (v-band or hose bead)
- Pre-machined speed sensor mounting boss (drill out to use)
- Turbine housing options for 110mm turbine wheel:
- T6 Single Scroll = 179159 (0.85 A/R)
- T6 Single Scroll = 179160 (1.00 A/R)
- T6 Single Scroll = 179161 (1.15 A/R)
- T6 Single Scroll = 178498 (1.30 A/R, longer turbine discharge)
- T6 Single Scroll = 179162 (1.45 A/R)
- T6 Twin Scroll = 179478 (1.15 A/R)
- T6 Twin Scroll = 179192 (1.45 A/R)
- T6 Twin Scroll = 179193 (1.60 A/R)
*Note: Turbine housings are sold separately and above requires external wastegate which are not included.
1 Year Limited Warranty
Need to make a repair? View core assemblies, just the cartridge, which can be purchased for quick repairs. This is the best method to make a repair as they come pre-balanced with new wheels which avoids the need for special rebuild tools (check that your end-housings are reusable).
Not sure which size turbo you need? Visit BorgWarner’s Match Bot to which will help you properly pick the best turbo for your application and goals.
Product use: For off-road use only in performance race applications.
